UMLet Screenshots

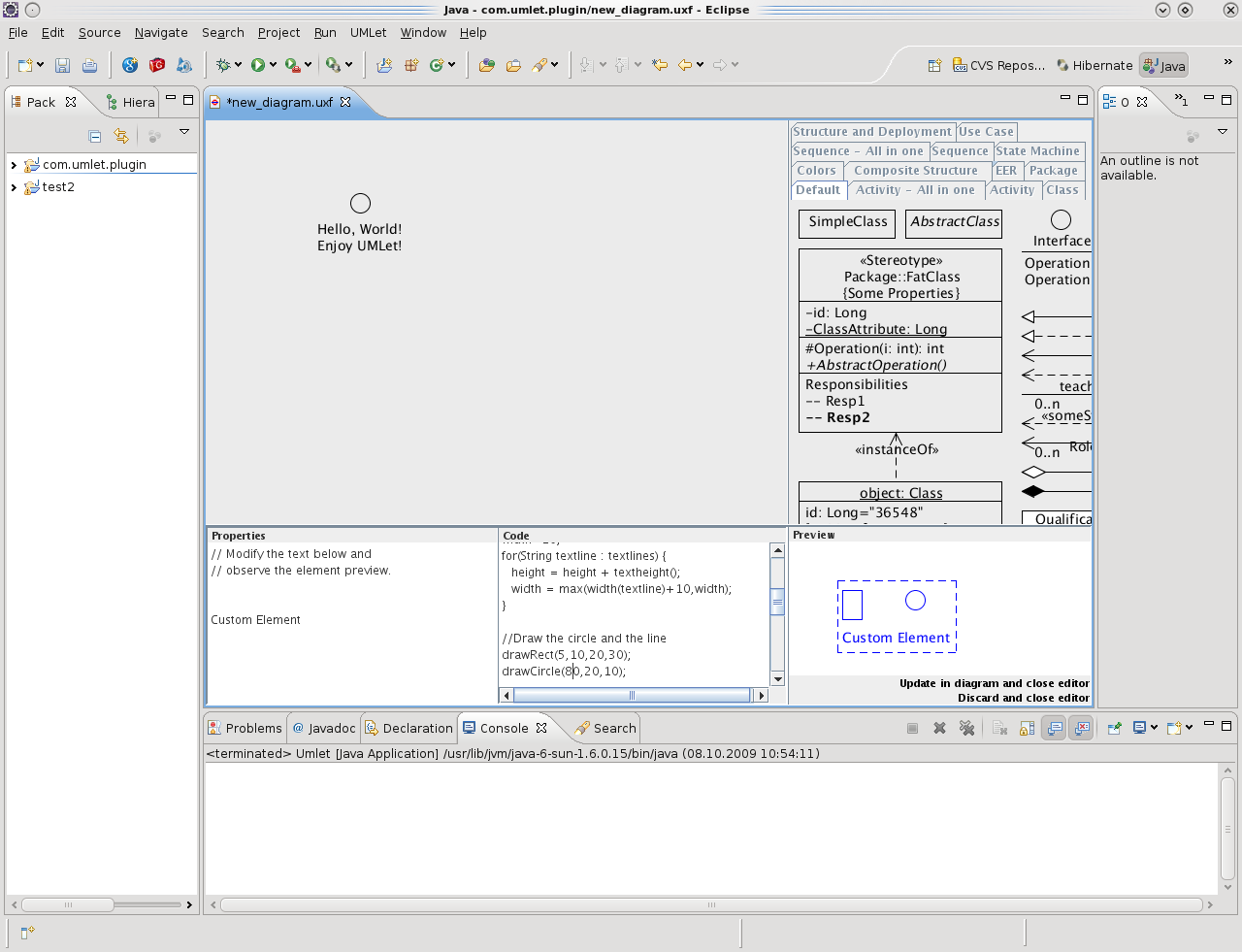

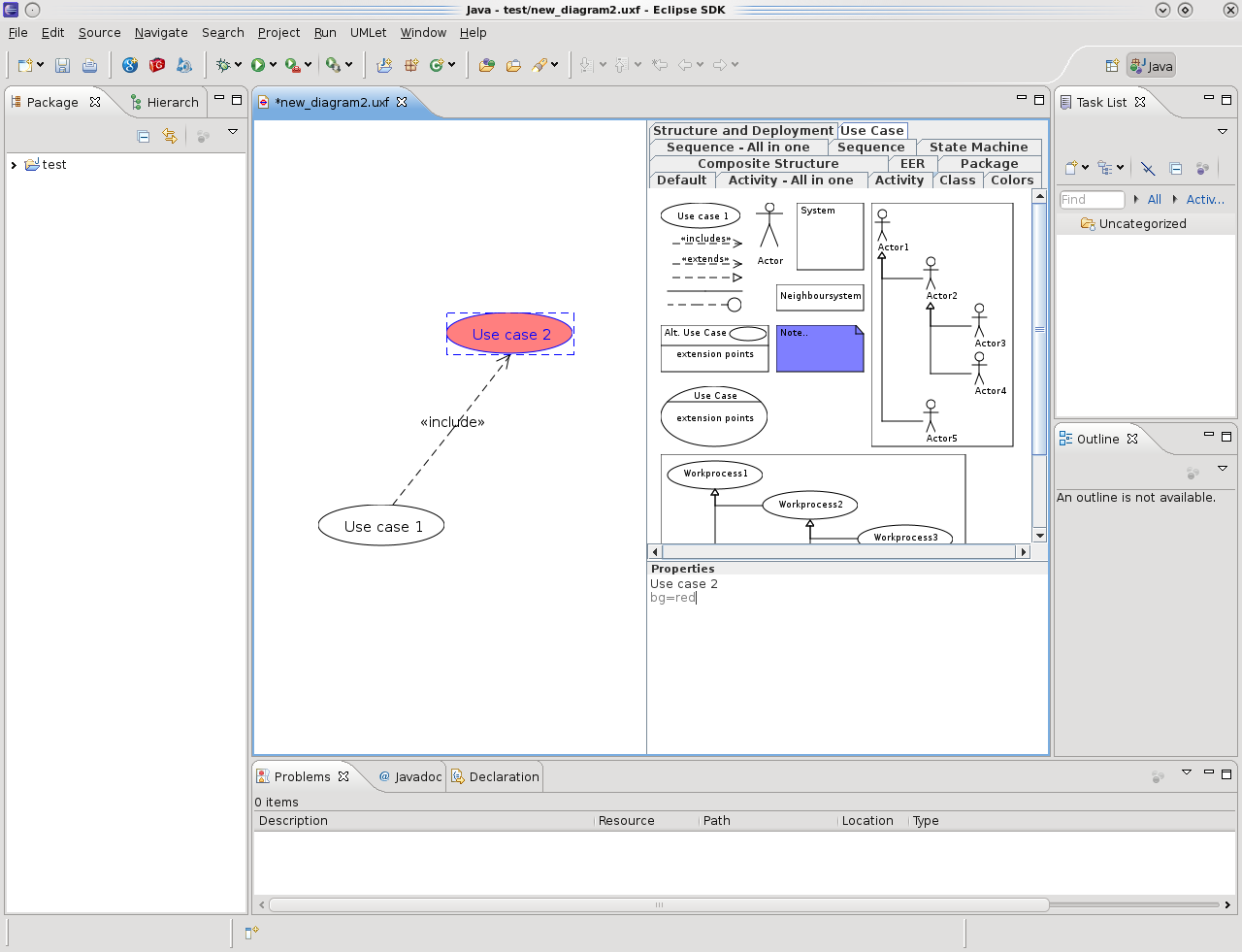

To give you an impression of UMLet, find below some screenshots of the Windows and Linux versions, and of the Eclipse plugin version.

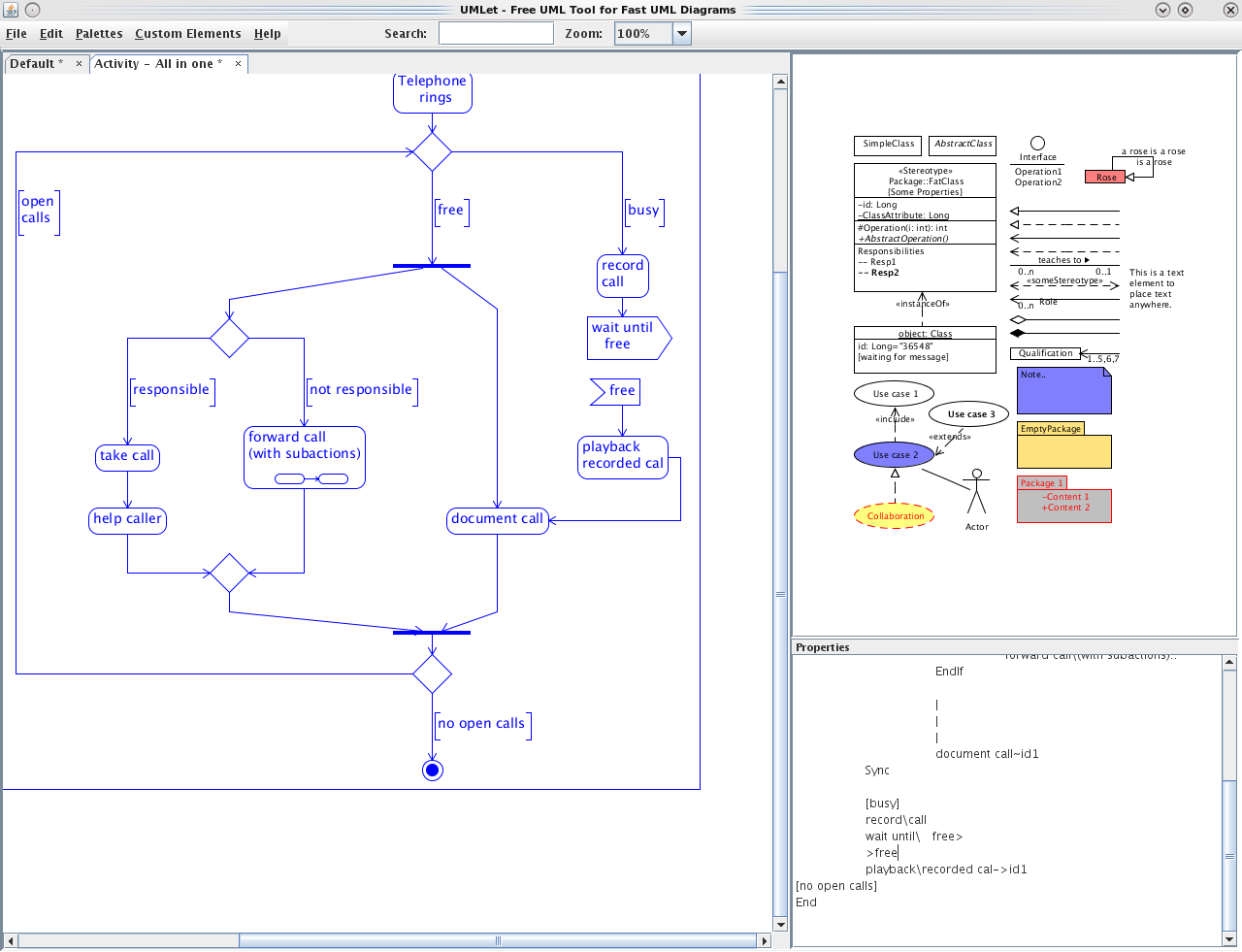

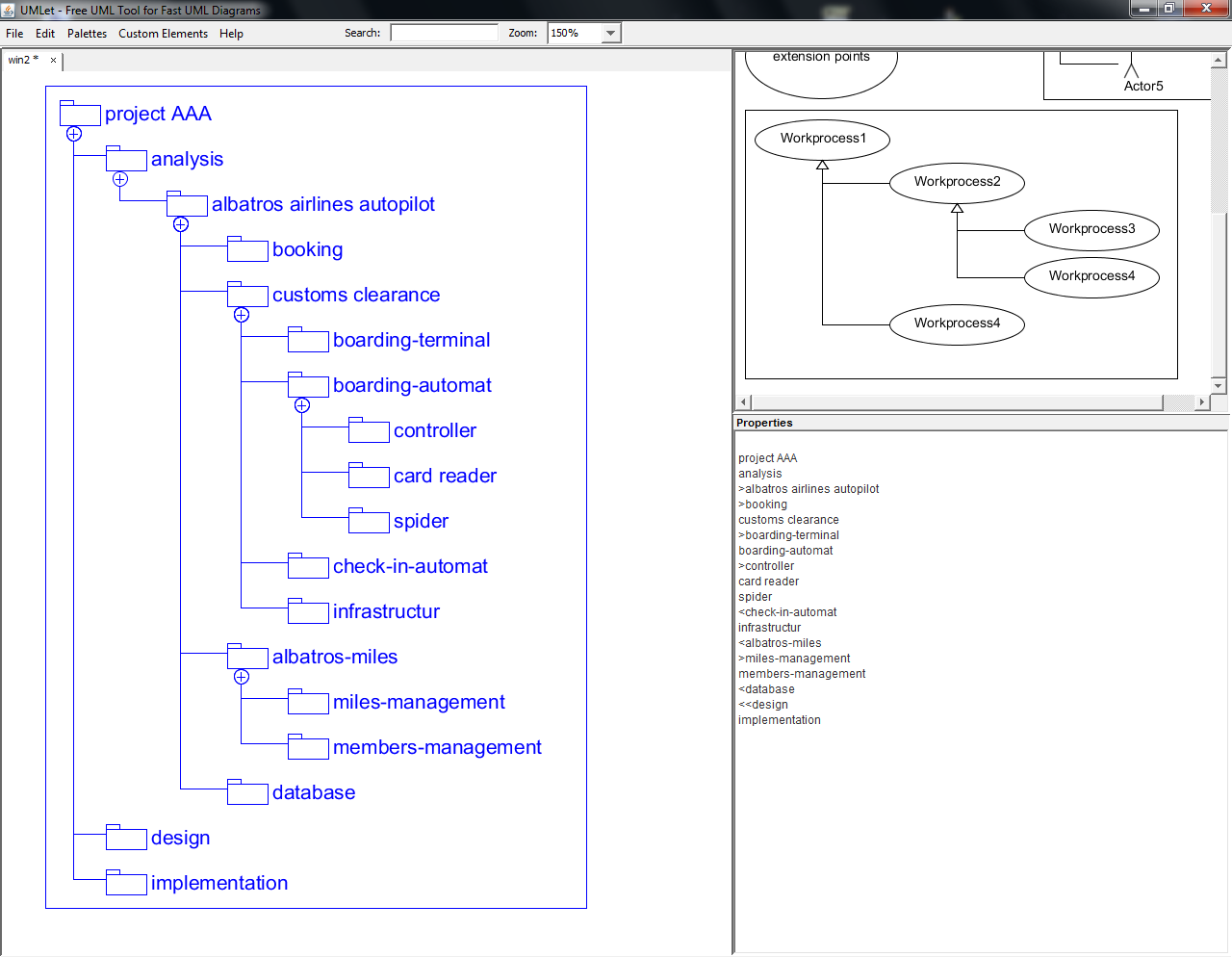

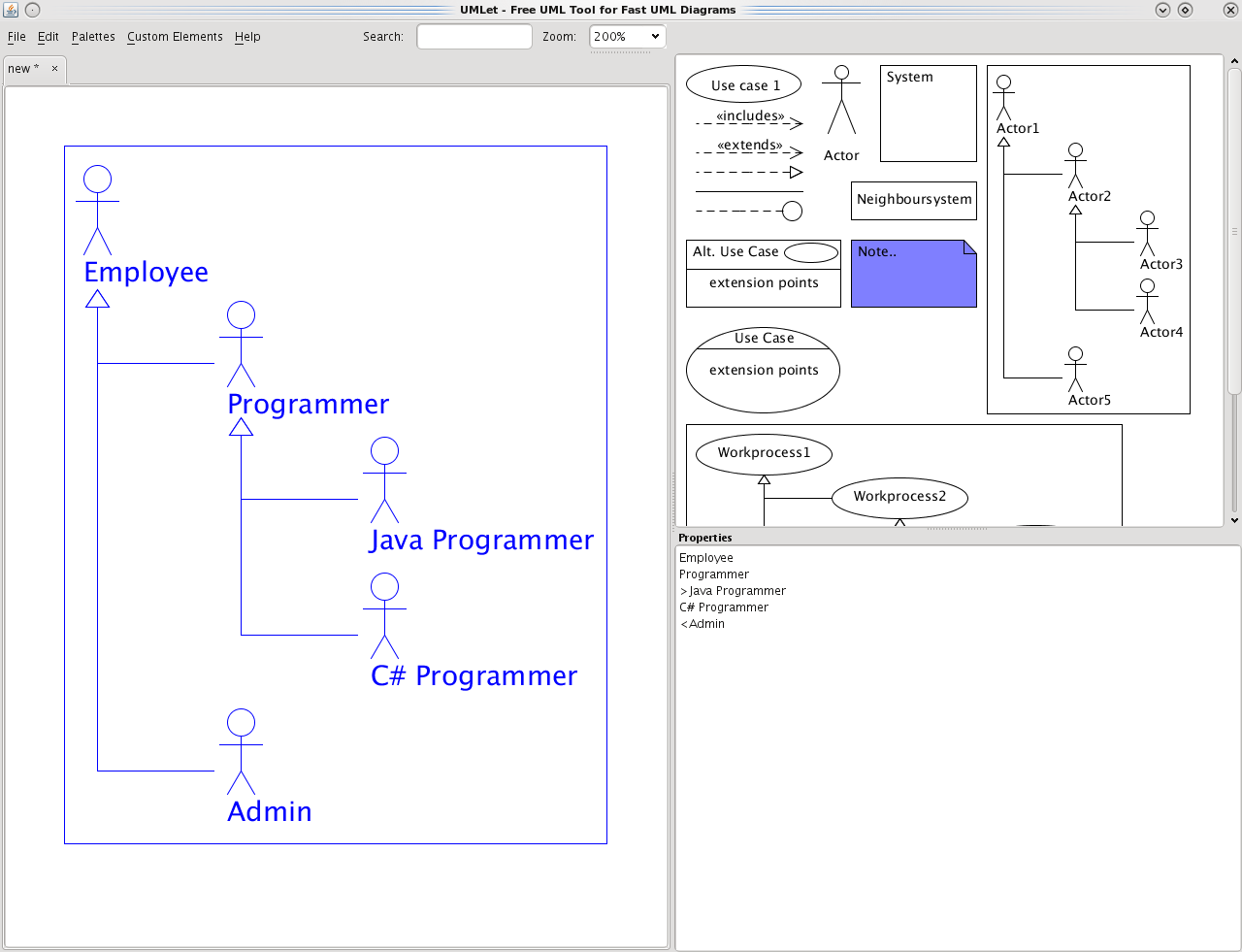

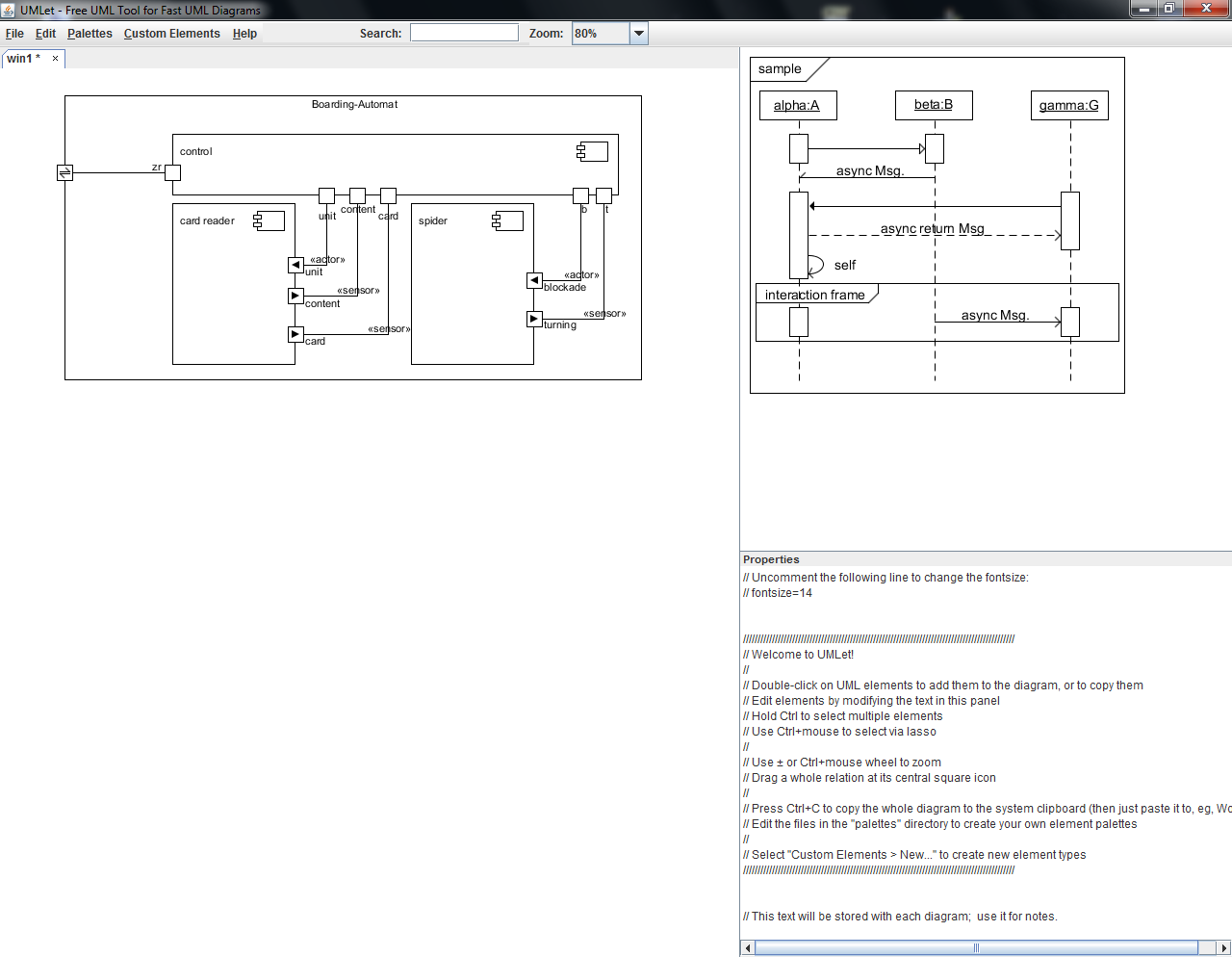

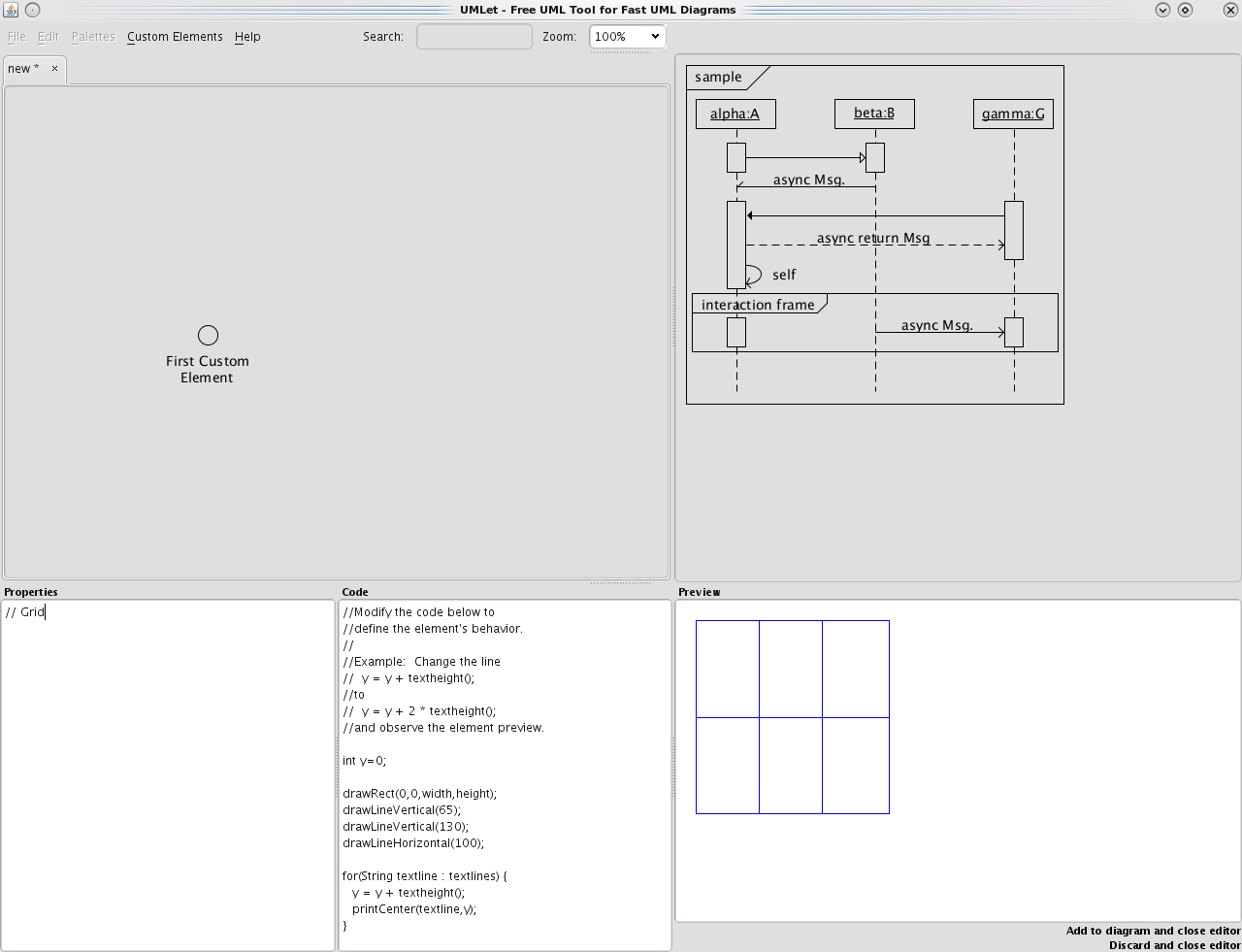

The screenshots show different types of UML diagrams, as well as the user interface to create custom UML elements. Note: sequence and activity diagrams can be created manually, but also using dedicated "comprehensive" UML elements whose behaviour is controlled via a markup language.
